Square Solid Bar
HELI-PILE® Square Solid Bar helical piles are our original piles. The extra high-strength solid bar piles are for all foundation and anchoring applications ranging from preloading equipment bases to soil stabilizing earth retention systems.
Brochure Order Guide Tech. Specs
| Shaft Size (in) | Ultimate Shaft Torque Capacity (ft-lbs) | Ultimate Compression Capacity (lbs) | Ultimate Tension Capacity (lbs) |
| 1.5 | 7,000 | 70,000 | 70,000 |
| 1.75 | 11,000 | 110,000 | 110,000 |
Modular (U.S. Patent 6,817,810)
HELI-PILE® installers asked for adaptability and adjustability. From this need arose the development of the patented Modular Helical Pile and Tieback. With the Modular Helical Pile, you can make any helix configuration necessary onsite in seconds. The modular termination eliminates the need for drilling the shaft when maximum torque or refusal is achieved before anticipated depth. Simply cut the shaft off, and thread on the desired termination. The ultimate adjustability for the lead sections and terminations means you have the right helical pile for the job, every time.
Brochure Order Guide Tech. Specs
| Shaft Size (in) | Ultimate Shaft Torque Capacity (ft-lbs) | Ultimate Compression Capacity (lbs) | Ultimate Tension Capacity (lbs) |
| 1.5 | 7,000 | 70,000 | 70,000 |
| 1.75 | 11,000 | 110,000 | 110,000 |
THE TERMINATOR (U.S. Patent 6,817,810)
HELI-PILE® introduced The Terminator, an extension that eliminates all problems associated with terminating helical piles and tiebacks. This termination is made out the high strength steel with a patented threaded square bar that bolts on and drives the pile. No field drilling or welding is required for attaching load transfer hardware. The threaded load transfer caps and tie-back nuts simply spin-on for full capacity in compression and tension applications.
| Shaft Size (in) | Ultimate Shaft Torque Capacity (ft-lbs) | Ultimate Compression Capacity (lbs) | Ultimate Tension Capacity (lbs) |
| 1.5 | 7,000 | 70,000 | 70,000 |
| 1.75 | 11,000 | 110,000 | 110,000 |
TERMINATIONS

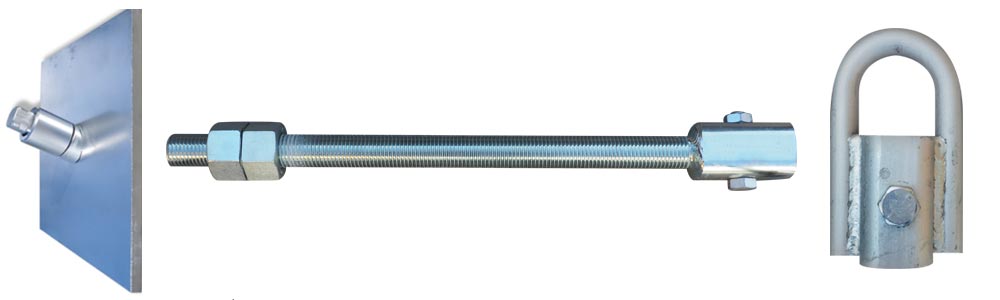

HELI-PILE® has an extensive inventory load transfer hardware, pile caps, and terminations. Our engineers and fabrication facility can design and build any specialized cap that is required for your job. Further product information can be found on technical info page. Identification is based of the pile size the termination will be used on.
Shoring & Earth Retention Panels

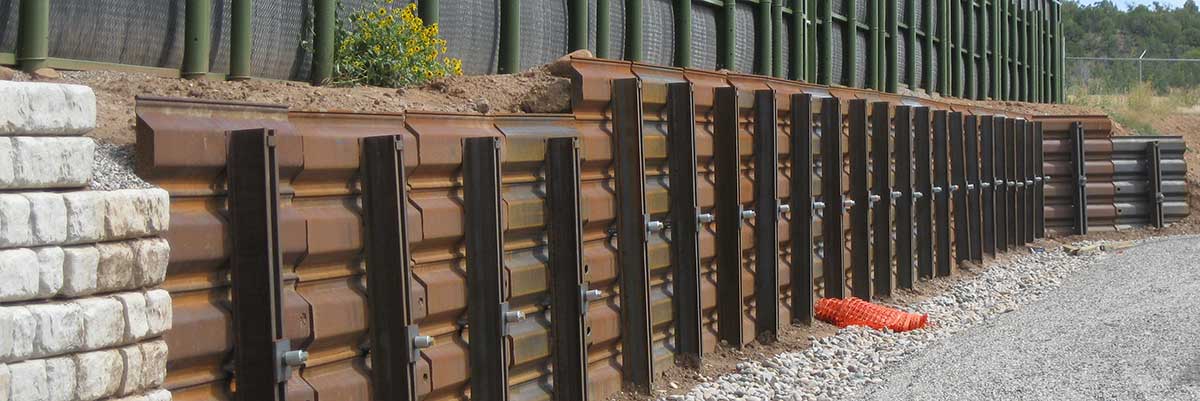

HELI-PILE® stocks shoring and earth retention panels for permanent and temporary applications that are designed to be used with our square solid bar or modular helical products.
